AT Motherboard (P8 & P9) Power Cable Pinout

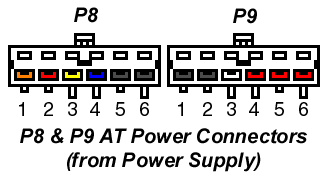

AT MOTHERBOARD POWER CONNECTORS

CONNECTOR P8

CONNECTOR P9

PIN	DESCRIPTION	PIN	DESCRIPTION
1 (Orange)	Power Good +5VDC	1 (Black)	Ground
2 (Red)	-5VDC	2 (Black)	Ground
3 (Yellow)	+12VDC	3 (White)	-5VDC
4 (Blue)	-12VDC	4 (Red)	+5VDC
5 (Black)	Ground	5 (Red)	+5VDC
6 (Black)	Ground	6 (Red)	+5VDC
